Here is some parts drawings, parts lists and valve info....

707 Operating Instructions in PDF format

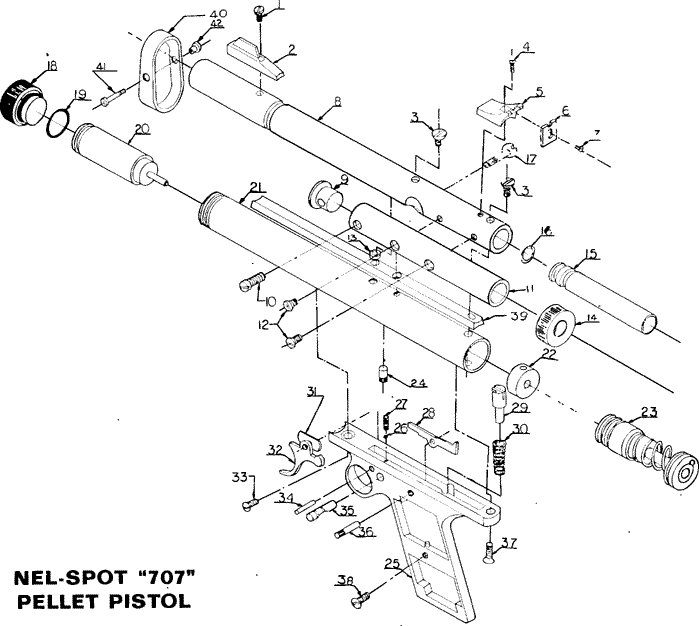

707 Exploded Parts Diagram

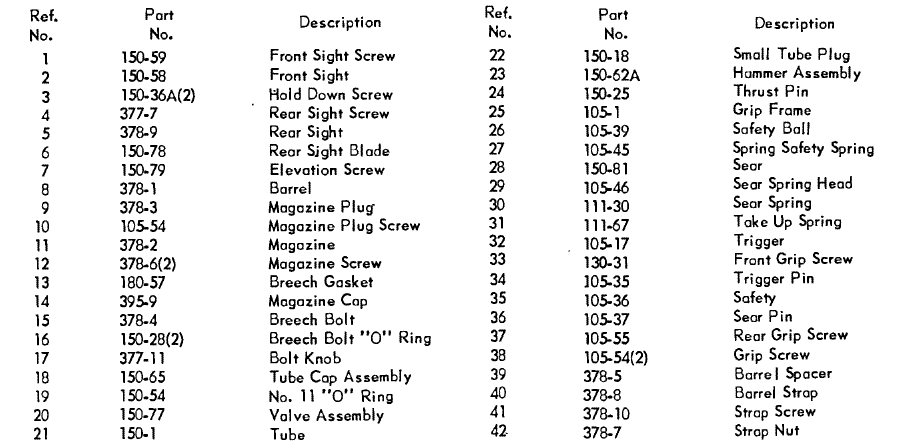

707 Part Numbers

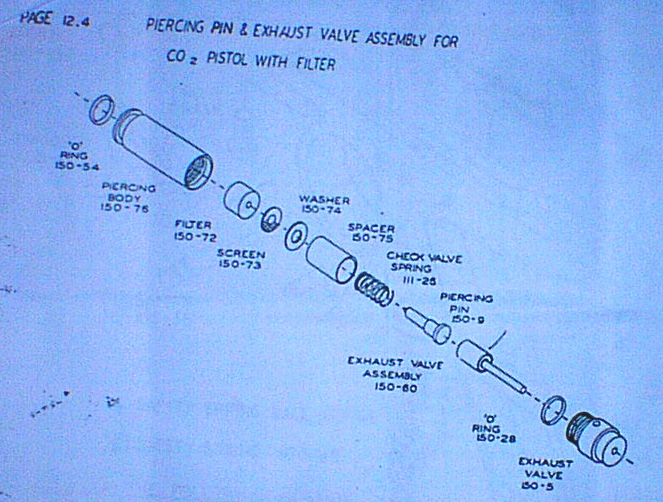

707 Valve Diagram

This valve assembly is the one that I have found in every 707 I have been into.  I have seen the front "piercing body" and "exhaust valve" in brass AND aluminum so either seems to be acceptable but the aluminum probably came later in production.  This is actually the parts list for valve in a the Crosman 150/157 Pellet Pistol, but they are identical to the 707 version and you can still get NOS parts for the 150!  The main difference between this one and the other is the felt filter, screen, spacer and washer in the front end.



Here is some parts drawings, parts lists and valve info....

707 Operating Instructions in PDF format

707 Exploded Parts Diagram

707 Part Numbers

707 Valve Diagram

This valve assembly is the one that I have found in every 707 I have been into.  I have seen the front "piercing body" and "exhaust valve" in brass AND aluminum so either seems to be acceptable but the aluminum probably came later in production.  This is actually the parts list for valve in a the Crosman 150/157 Pellet Pistol, but they are identical to the 707 version and you can still get NOS parts for the 150!  The main difference between this one and the other is the felt filter, screen, spacer and washer in the front end.

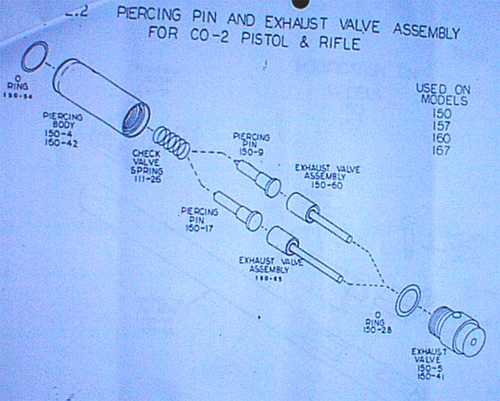

707 Valve Diagram 2

I have not seen this particular valve assembly in a 707. I have seen it in lots of 150/157s.  The "piercing body" is the same external dimensions but the inside is not milled for the filter to fit into.

On to the teardown....



707 Valve Diagram 2

I have not seen this particular valve assembly in a 707. I have seen it in lots of 150/157s.  The "piercing body" is the same external dimensions but the inside is not milled for the filter to fit into.

On to the teardown....
